Quick Details

  • Condition: New
  • Type: Pipe Production Line, Spiral round duct forming machine
  • Pipe Material: Stainless Steel
  • Application: Energy Supply Pipe
  • Production Capacity: 1-38 m /min
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: SBJX
  • Model Number: SBJX-1500D
  • Voltage: 380V/220V/415V/400V
  • Power(W): 5.5 KW
  • Dimension(L*W*H): 2600*1980*2050 mm
  • Weight: 1834kg
  • Certification: CE ISO-9001
  • Warranty: 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • thickness: 0.4-1.0mm
  • Width of Strip: 137mm
  • Diameter range: 80--1500mm
  • Control system:: Touch screen, PLC,
  • Cutting system:: saw/shear/plasm cutting
  • Lock seam:: interlock, inside or outside
  • Drive system:: Hydrualic + Motorised

Packaging & Delivery

Packaging Details Exported Standard Packing --Wooden carton for Spiral round duct forming machine
Delivery Time With 20days

Spiral round duct forming machine

Product Description

Main features of Spiral round duct forming machine

I Automatic Spiral round duct forming machine

1.1            Special mould for various tube diameters, very easy to change and adjust, no needs crane or too much manpower.

1.2            Large diameter range

1.3            High speed synch flying cutting system.

1.4            PLC computer control, convenient operation.

1.5            Light and small, suitable for site work.

                      Main technical data----  Spiral round duct forming machine

Diameter Range

80-1500mm

Maximum Tube Length

Unlimited mm

Thickness of Strip

0.4-1.0mm

Width of Strip

137-mm

Strip Speed

1-40m/min

Suitable Material

Aluminum, Stainless steel, Galvanized steel,etc

Dimension (L x W x H)

2600mm*1980mm*2050mm

Weight

1800kg

Main Motor Power

5.5kW

Cutting Motor Power

4kW



Company Information

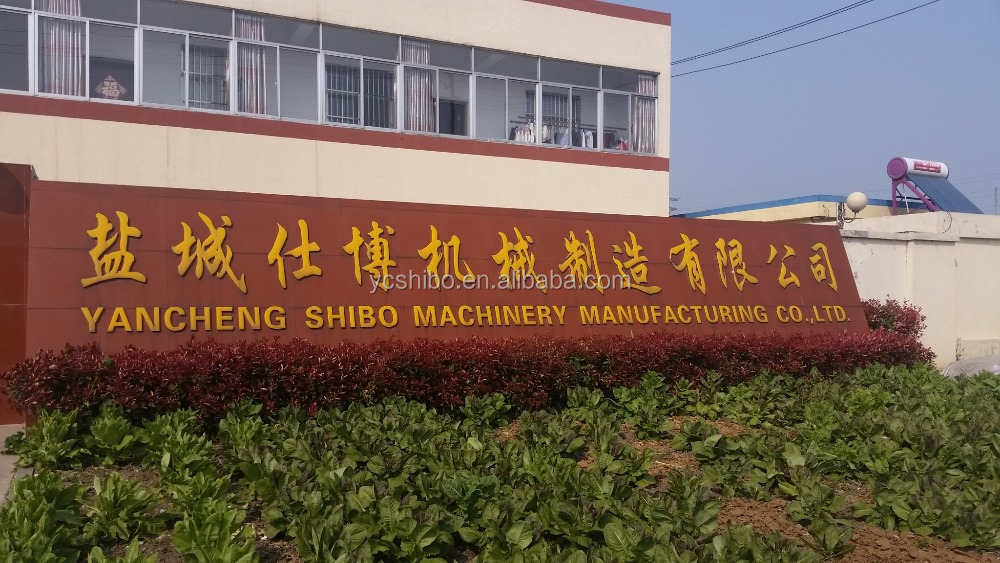

Yancheng shibo machinery Co.,LTD. is the professional manufacturer of spiral round duct forming machineand metal forming machines for more than 10 years.

Also offer OEM service to the customer.has certified by CE , UKAS,

We can provide you not only good quality spiral duct machine but also values for Yancheng shibo machinery .

FAQ

Q: How to check imported charges or tax ?

A:Call your Customer.tell them machine HS code.

   Spiral duct forming machine is 8455229090

   Press brake and rolling machines are 84622990.

   shearing machine is 84623990.

   rolling machine is 8455229090,

   seam welding machine is 85152900



Q:Payment terms,MOQ,warranty,FOB...

A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery

   minimum order quantity:1 set,FOB Shanghai.

   delivery time :20days after receipt of formal order and 30% deposit.

   warranty:12 months following delivery.



Q: what’s the package?

 A:fumigation-free plywood case or without package



Q:Do you offer teaching&training ?

A: Yes , the engineer is available for oversea service



• what’s policy for guarantee and broken parts?

Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.

 machine|Spiral duct maki

Spira duct machine|Spiral tube forming machine|air duct machine| hvac duct forming machine|ventilation duct machine |machine for duct | hvac duct machine|duct machine
