Quick Details

  • Condition: New
  • Type: Pipe Production Line, spiral duct making machine
  • Pipe Material: Carbon Steel
  • Application: Energy Supply Pipe
  • Production Capacity: 1-38M/MIN
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: SBJX
  • Model Number: SBJX-1500C
  • Voltage: 380V/415V/400V/220V
  • Power(W): 11KW
  • Dimension(L*W*H): 2650*1980*2000mm
  • Weight: 2000KGS
  • Certification: CE ISO9001
  • Warranty: 12months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Width: 137 mm
  • Thickness: 0.4- 1.5 mm
  • Diameter: 80 - 1500 mm
  • Cutting system: Saw /shear
  • Drive System: Hydrualic + Motorised
  • Painting color: Customized
  • Lock Seam: Interlock insider or outside
  • Control system: Touch screen , PLC
  • Forming Mould: Steel strip ,fixed mould

Packaging & Delivery

Packaging Details Exported Standard Packing --Wooden case for spiral duct making machine
Delivery Time With 20days

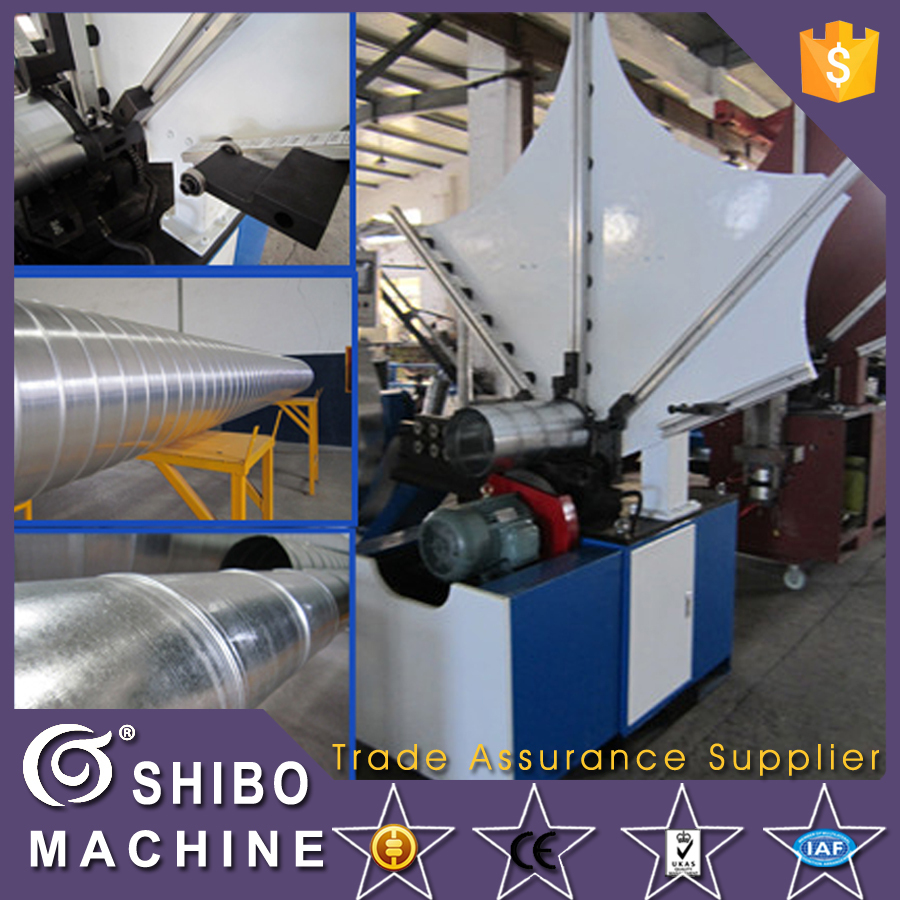

Spiral duct making machine

Product Description

Main Specifications of  Spiral duct making machine







                         Main technical data---  spiral duct making machine

Diameter Range

200-1500mm

Maximum Tube Length

Unlimited mm

Thickness of Strip

0.6-1.5 mm

Width of Strip

137-mm

Strip Speed

1-40m/min

Suitable Material

Aluminum, Stainless steel, Galvanized steel,etc

Dimension (L x W x H)

2650mm*1980mm*2000mm

Weight

2000kg

Main Motor Power

11kW

Cutting Motor Power

5.5kW

Air Pressure

0.5-2.0Mpa



Company Information

Yancheng shibo machinery Co.,LTD. is the professional manufacturer of spiral round duct forming machineAnd metal forming machines for more than 10 years.

Also offer OEM service to the customer.has certified by CE , UKAS .

We can provide you not only good quality spiral duct machine but also values for Yancheng shibo machinery .

FAQ



Q: How to check imported charges or tax ?

A:Call your Customer.tell them machine HS code.

   Spiral duct forming machine is 8455229090

   Press brake and rolling machines are 84622990.

   shearing machine is 84623990.

   rolling machine is 8455229090,

   seam welding machine is 85152900



Q:Payment terms,MOQ,warranty,FOB...

A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery

   minimum order quantity:1 set,FOB Shanghai.

   delivery time :20days after receipt of formal order and 30% deposit.

   warranty:12 months following delivery.



Q: what’s the package?

 A:fumigation-free plywood case or without package

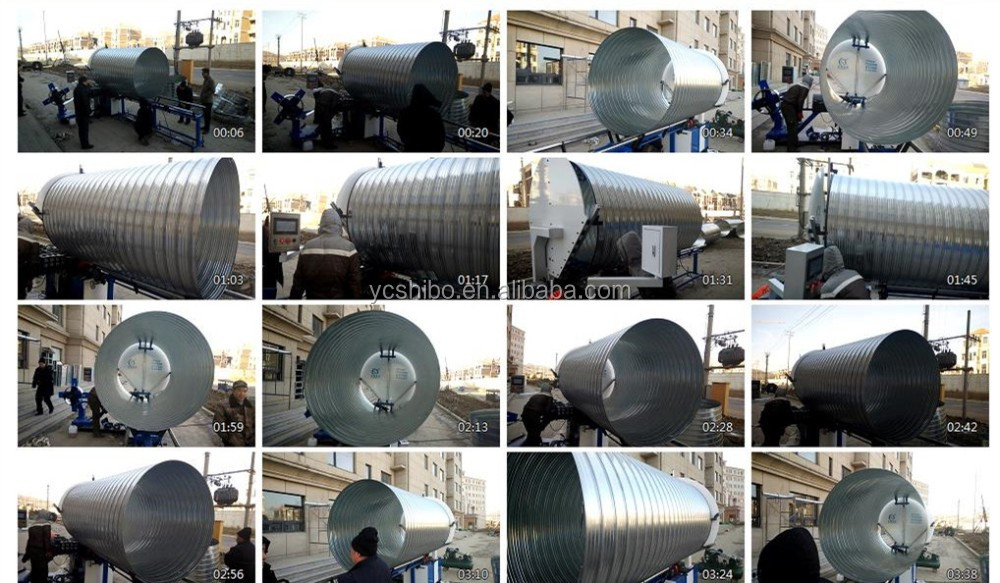

 Photo of   Spiral duct making machine

Spira duct machine|Spiral tube forming machine|air duct machine| hvac duct forming machine|ventilation duct machine |machine for duct | hvac duct machine|duct machine
