Quick Details

  • Condition: New
  • Type: Pipe Production Line, Spiral tube making machine
  • Pipe Material: Carbon Steel
  • Application: Energy Supply Pipe
  • Production Capacity: 1-36 M/MIN
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: SBJX
  • Model Number: SBJX-1500D
  • Voltage: 380V/400V/415V/220V
  • Power(W): 5.5KW
  • Dimension(L*W*H): 2600*1980*2050mm
  • Weight: 12months
  • Certification: CE ISO9001
  • Warranty: 12months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Thickness: 0.4- 1.2 MM
  • Diameter: 80- 1500 MM
  • Control system:: Touch screen, PLC,
  • Cutting system:: saw/shear/plasm cutting
  • Lock seam:: interlock, inside or outside
  • Forming mould:: steel strip, fixed mould
  • Drive system:: Hydrualic + Motorised
  • Oversea market: Australia , Hungary , Japan , France ,

Packaging & Delivery

Packaging Details Exported Standard Packing --Wooden carton for spiral tube making machine
Delivery Time Shipped in 25 days after payment

Spiral tube making machine

Product Description

 Main Features of the Spiral tube making machine

The spiral tube making machine  is used to produce the spiral round duct for ventialtion purpose , diameter from 80-1500mm and material thickness up to 1.0 mm .



 Spiral tube machine|spiral duct machine| spiral duct forming machine|spiral tube forming machine |hvac duct former |hvac tube forming machine|spiral air duct machine| spiral tube making machine|ventilation air duct forming machine|locker former machine|spiral tube making machine|spiral pipe machine|Metal rolling forming machine|Elbow making machine|HVAC duct forming mach

                   Main technical data ------ Spiral tube making machine

Diameter Range

200-2000mm

Maximum Tube Length

Unlimited mm

Thickness of Strip

0.6-2.0mm

Width of Strip

137-mm

Strip Speed

1-40m/min

Suitable Material

Aluminum, Stainless steel, Galvanized steel,etc

Dimension (L x W x H)

2650mm*1550mm*2000mm

Weight

2260kg

Main Motor Power

11kW

Cutting Motor Power

5.5kW

Air Pressure

0.5-2.0Mpa

FAQ

 Q: How to check imported charges or tax ?

A:Call your Customer.tell them machine HS code.

   Spiral duct forming machine is 8455229090

   Press brake and rolling machines are 84622990.

   shearing machine is 84623990.

   rolling machine is 8455229090,

   seam welding machine is 85152900



Q:Payment terms,MOQ,warranty,FOB...

A:Payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery

   Minimum order quantity:1 set,FOB Shanghai.

  Delivery time :20days after receipt of formal order and 30% deposit.

  Warranty:12 months following delivery.



 Q: what’s the package?

 A:fumigation-free plywood case or without package



Q:Do you offer teaching&training ?

A: Yes , the engineer is available for oversea service



 • what’s policy for guarantee and broken parts?

Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.

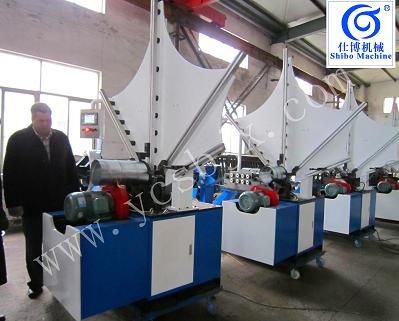

PHOTO OF SPIRAL TUBE MAKING MACHINE

Company Information

Shibo  manufacturer with 10 years producing experience for better quality control , Welcome to Shibo machinery for inspecting .

The factory located in Yancheng ,Jiangsu province , very close to Shanghai , Nanjing...The customer can flight  to my city from Shanghai or Guagnzhou directly .

Shanghai to Yancheng :(13:10-14:00pm)  ( Tuesday , Thursday , Sunday per week)

Guangzhou to Yancheng: (15:45pm-18:10pm per day !

e



Packaging & Shipping

 Packings of Spiral tube making machine
