Quick Details

  • Condition: New
  • Type: Pipe Production Line, Ventilation duct machine
  • Pipe Material: Carbon Steel
  • Application: Energy Supply Pipe
  • Production Capacity: 1-38M/MIN
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: SBJX
  • Model Number: SBJX-2000A
  • Voltage: 380V/415V/400V/220V
  • Power(W): 20.5KW
  • Dimension(L*W*H): 2600*1980*2050
  • Weight: 1800KGS
  • Certification: CE ISO9001
  • Warranty: One year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Width: 137 mm
  • Thickness: 0.4 - 2.0 MM
  • Diameter: 100 - 2000 MM
  • Control system: Touch screen , PLC
  • Cutting system: Saw /shear
  • Drive System: Hydrualic + Motorised
  • Lock Seam: Interlock insider or outside
  • Forming Mould: Steel strip ,fixed mould

Packaging & Delivery

Packaging Details Wooden carton for Ventilation duct machine
Delivery Time Shipped in 20 days after payment

Ventilation duct machine

Product Description

Main features of  Ventilation duct machine



Ventilation duct machine is used to produce the  spiral round duct for ventilation purpose  .

Diameter  from 80 - 1500 mm , Material thickness up to 2.0 mm

                                     Main technical data------  Ventilation duct machine

Diameter Range

200-2000mm

Maximum Tube Length

Unlimited mm

Thickness of Strip

0.6-2.0mm

Width of Strip

137-mm

Strip Speed

1-36m/min

Suitable Material

Aluminum, Stainless steel, Galvanized steel,etc

Dimension (L x W x H)

2650mm*1550mm*2000mm

Weight

2260kg

Main Motor Power

15kW

Cutting Motor Power

5.5kW

Air Pressure

0.5-2.0Mpa

Company Information

Yancheng shibo machinery Co.,LTD.  the professional manufacturer of spiral round duct forming machineand metal forming machines for more than 10 years.

Also offer OEM service to the customer.has certified by CE , UKAS,



FAQ

Q: How to check imported charges or tax ?

A:Call your Customer.tell them machine HS code.

   Spiral duct forming machine is 8455229090

   Press brake and rolling machines are 84622990.

   shearing machine is 84623990.

   rolling machine is 8455229090,

   seam welding machine is 85152900



Q:Payment terms,MOQ,warranty,FOB...

A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery

   minimum order quantity:1 set,FOB Shanghai.

   delivery time :20days after receipt of formal order and 30% deposit.

   warranty:12 months following delivery.



Q: what’s the package?

 A:fumigation-free plywood case or without package



• what’s policy for guarantee and broken parts?

Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.

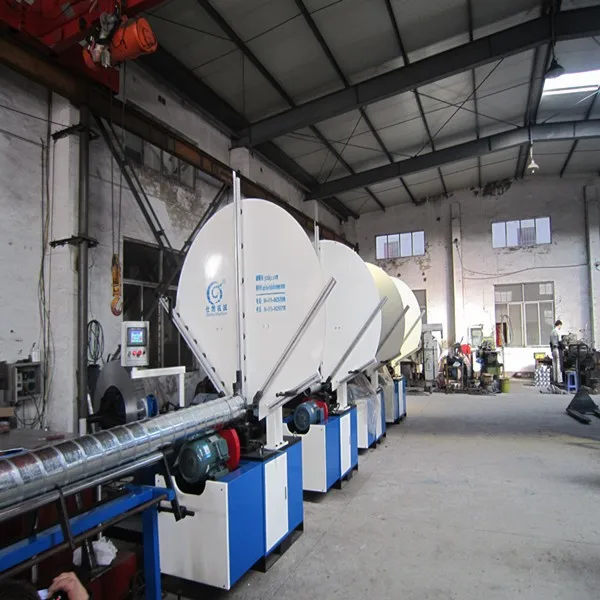

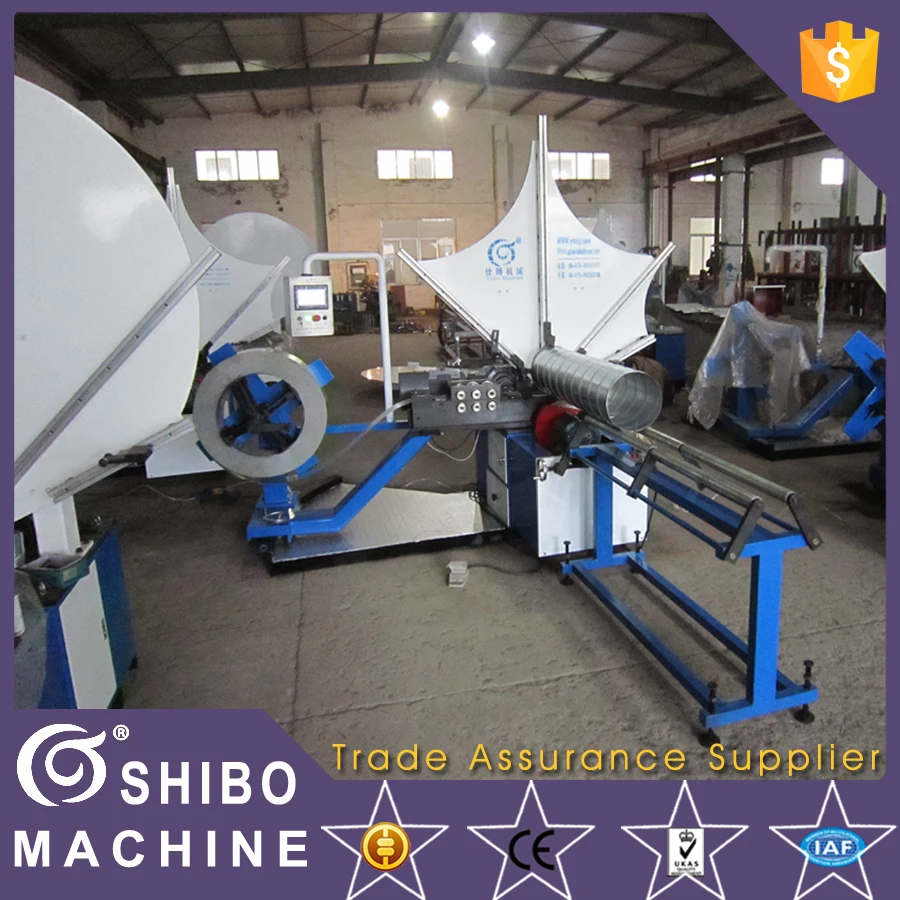

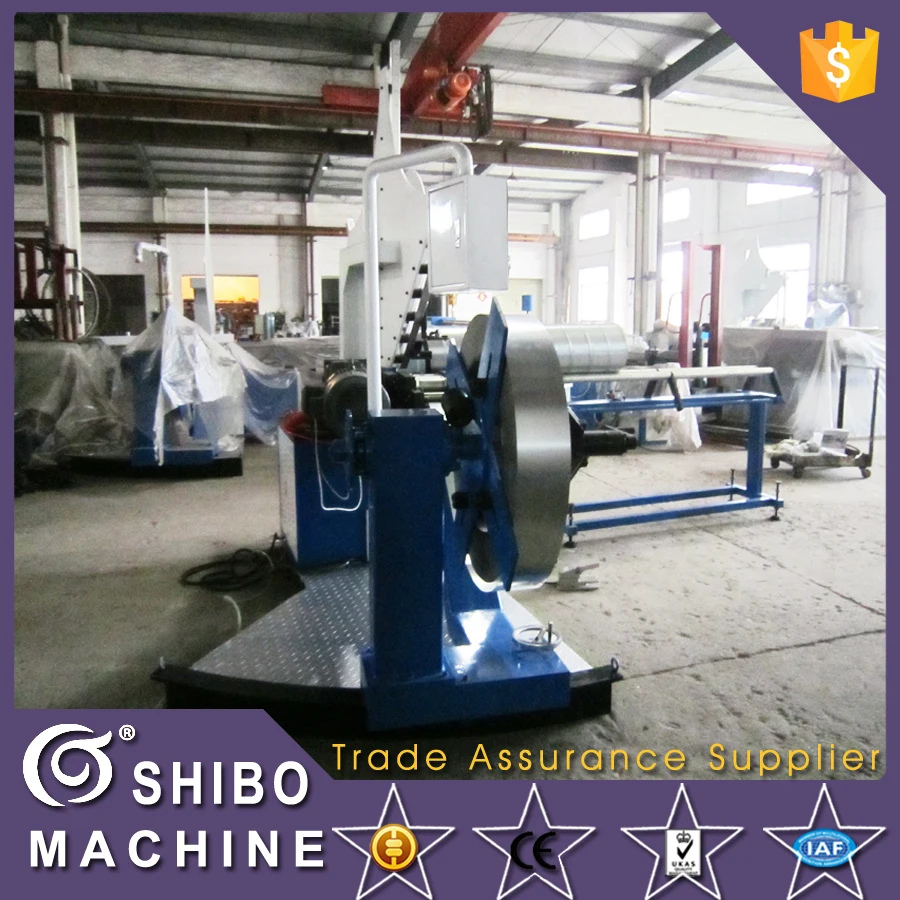

Photo of  Ventilation duct machine
