Quick Details

  • Condition: New
  • Type: Pipe Production Line, HVAC spiral duct machine
  • Pipe Material: Carbon Steel
  • Application: Energy Supply Pipe
  • Production Capacity: 1-38M/MIN
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: SBJX
  • Model Number: SBJX-1500D
  • Voltage: 380V/Customized
  • Power(W): 5.5KW
  • Dimension(L*W*H): 2600*1980*2050MM
  • Weight: 1835KGS
  • Certification: CE ISO9001
  • Warranty: one year upon BL loading
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Width: 137 mm
  • Thickness: 0.4- 1.0 mm
  • Diameter: 80 - 1500 mm
  • Control system:: Touch screen, PLC,
  • Cutting system:: saw/shear/plasm cutting
  • Lock seam:: interlock, inside or outside
  • Forming mould:: steel strip, fixed mould
  • Drive system:: Hydrualic + Motorised

Packaging & Delivery

Packaging Details Wooden carton for HVAC spiral duct machine

HVAC Spiral duct machine

Product Description

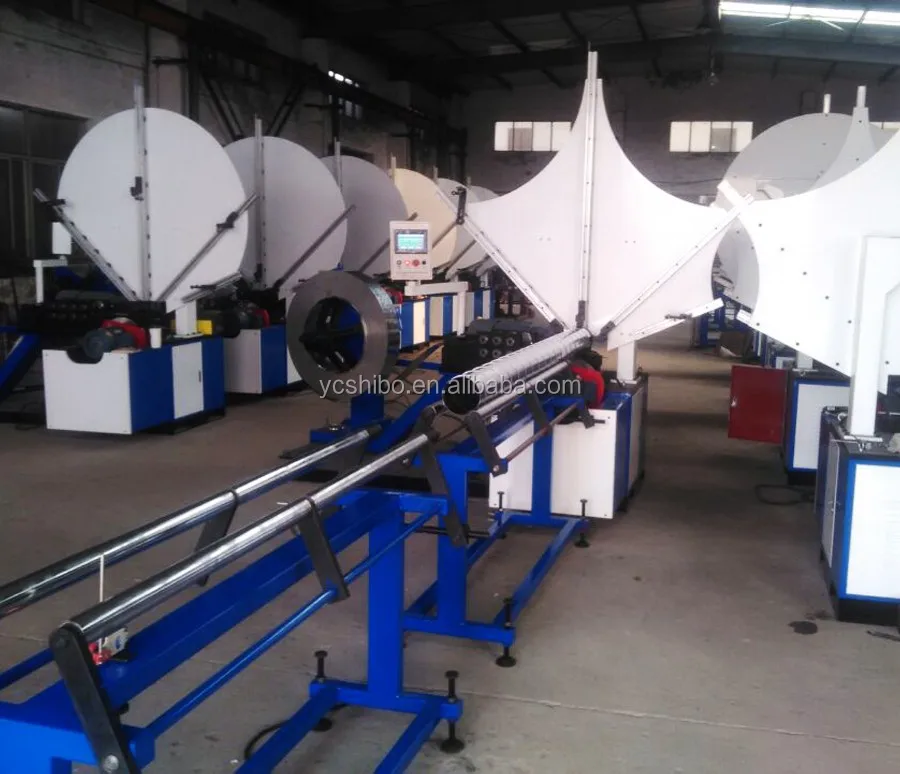

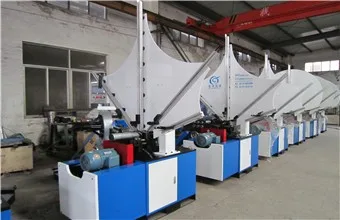

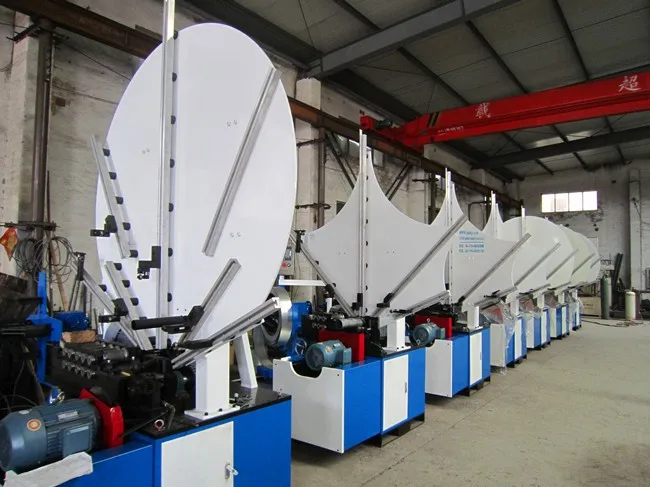

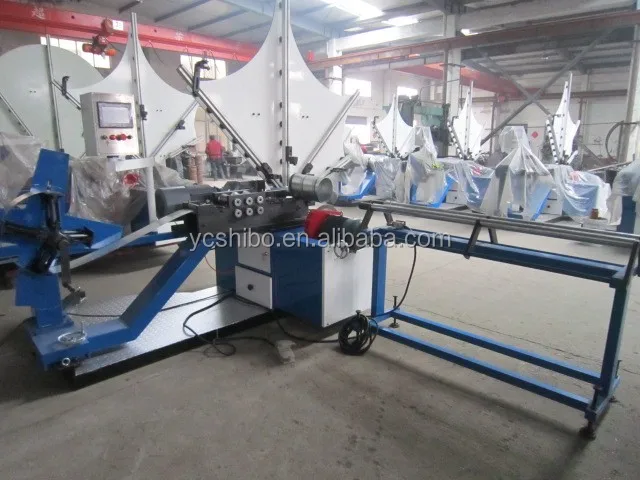

HVAC Spiral duct machine

Product Description

Main technical data of HVAC  spiral duct  machine

 Hvac spiral duct machine  is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.



              Main technical data-------  HVAC  spiral duct  machine

Diameter Range

80-1500mm

Maximum Tube Length

Unlimited mm

Thickness of Strip

0.4-1.0mm

Width of Strip

137mm

Strip Speed

1-36m/min

Suitable Material

Aluminum, Stainless steel, Galvanized steel,etc

Dimension (L x W x H)

2600mm x 1980mm x 2050mm

Weight

1800kg

Main Motor Power

5.5kW

Cutting Motor Power

4kW

Air Pressure

0.5-0.7Mpa

Control System

Japan Omron transducer & PLC





Company Information

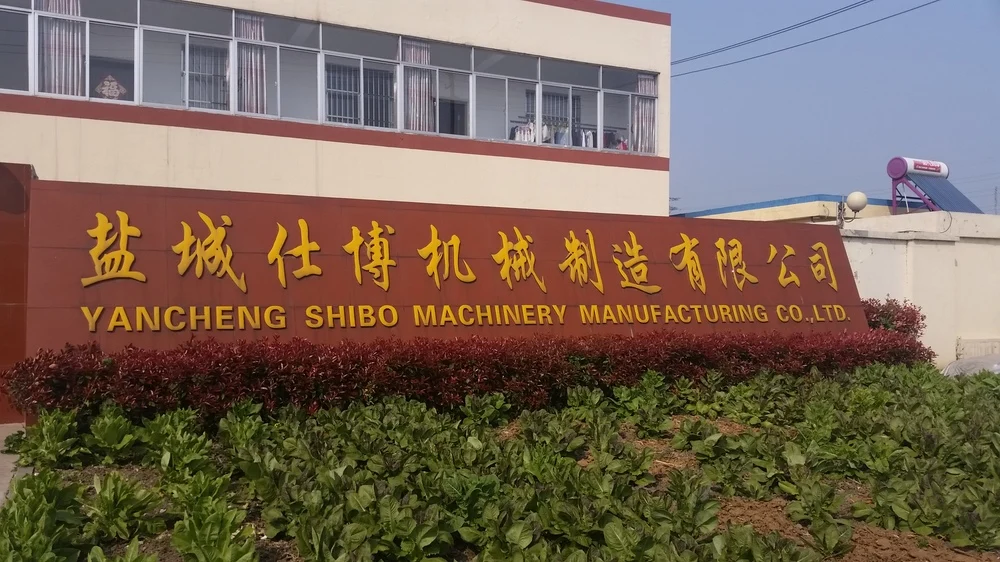

Yancheng shibo machinery Co.,LTD. is the professional manufacturer of spiral round duct forming machineand metal forming machines for more than 10 years.



We offer duct machine , cutting machine ,seam welding machine , door rolling machine , square duct autoline , and different kinds of cold metal rolling machine  .



Shibo do everything for your success !





FAQ



Q: How to check imported charges or tax ?

A:Call your Customer.tell them machine HS code.

   Spiral duct forming machine is 8455229090

   Press brake and rolling machines are 84622990.

   shearing machine is 84623990.

   rolling machine is 8455229090,

   seam welding machine is 85152900



Q:Payment terms,MOQ,warranty,FOB...

A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery

   minimum order quantity:1 set,FOB Shanghai.

   delivery time :20days after receipt of formal order and 30% deposit.

   warranty:12 months following delivery.

Spira duct machine|Spiral tube forming machine|air duct machine| hvac duct forming machine|ventilation duct machine |machine for duct | hvac duct machine|duct machine
