Quick Details

  • Condition: New
  • Type: Pipe Production Line, HVAC Automatic spiral duct forming machine
  • Pipe Material: Carbon Steel
  • Application: Energy Supply Pipe
  • Production Capacity: 1-38M/MIN
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: SBJX
  • Model Number: SBJX-1500D
  • Voltage: 380V/Customized
  • Power(W): 5.5KW
  • Dimension(L*W*H): 2600*1980*2050MM
  • Weight: 1835KGS
  • Certification: CE ISO9001
  • Warranty: one year upon BL loading
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Length: unlimited
  • Thickness: 0.4-1.0mm
  • Width: 137mm
  • Diameter: 80-1500mm
  • Drive system:: Hydrualic + Motorised
  • Control system:: Touch screen, PLC,
  • Cutting system:: saw/shear/plasm cutting
  • Lock seam:: interlock, inside or outside
  • Forming mould:: steel strip, fixed mould

Packaging & Delivery

Packaging Details Wooden carton for HVAC Automatic spiral duct forming machine

HVAC Automatic spiral duct forming  machine

Product Description

Main features of  HVAC Automatic spiral duct forming  machine

HVAC Automatic spiral duct forming  machine is suitable for making spiral duct, pipe,tube , and hvac duct

widely used in all kinds of industrial.
-Fully auto material feeding, forming , lubrication and tube cutting.
-With length safety system, auto stop when pass setting length.
-Adopt photoelectric tracking system.
-Completed with OMORON PLC Control and Frequency Converter from Japan, speed could be adjusted.
-Different mould to meeting respective request, just change mould to make various diameter.
-Complete with all safety features, with emergency stop button.

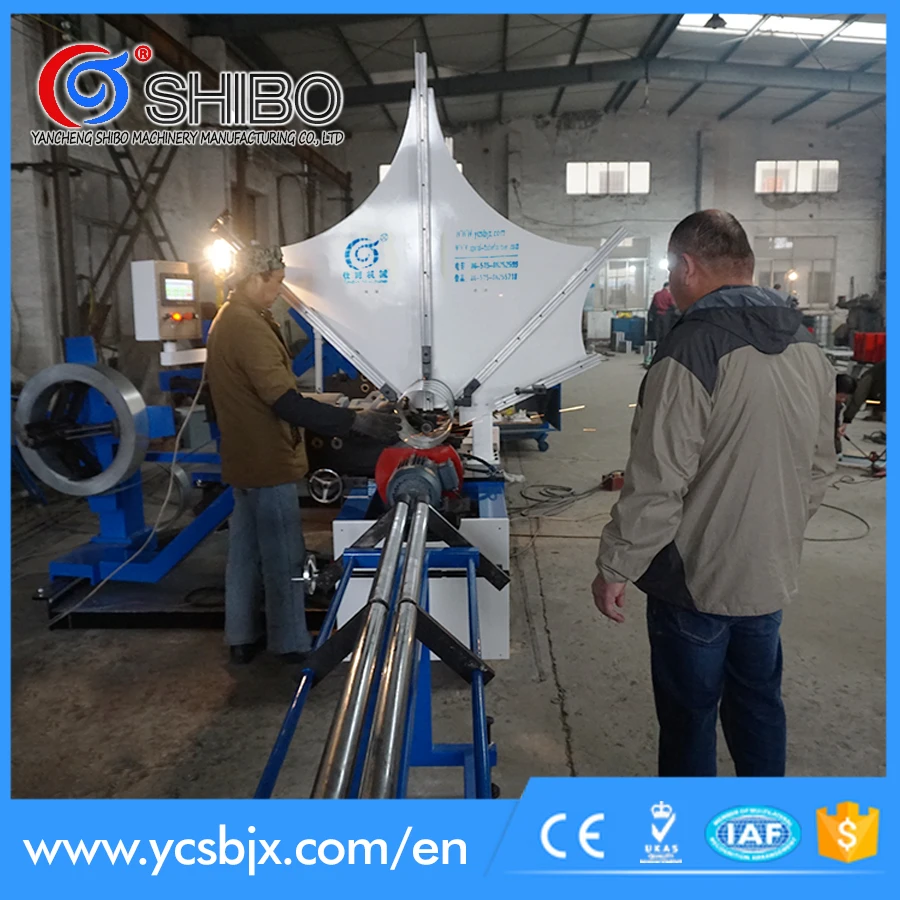

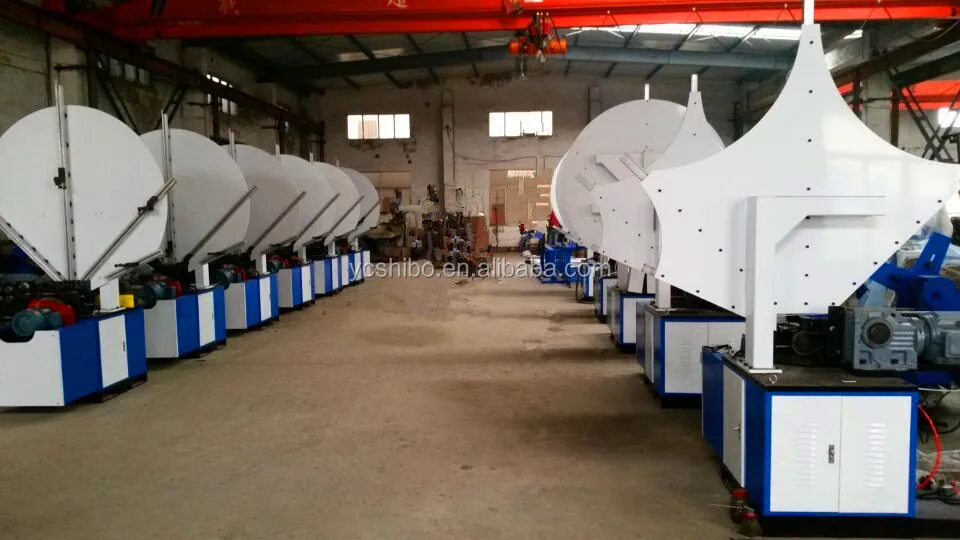

Photo of HVAC automatic spiral duct forming machine

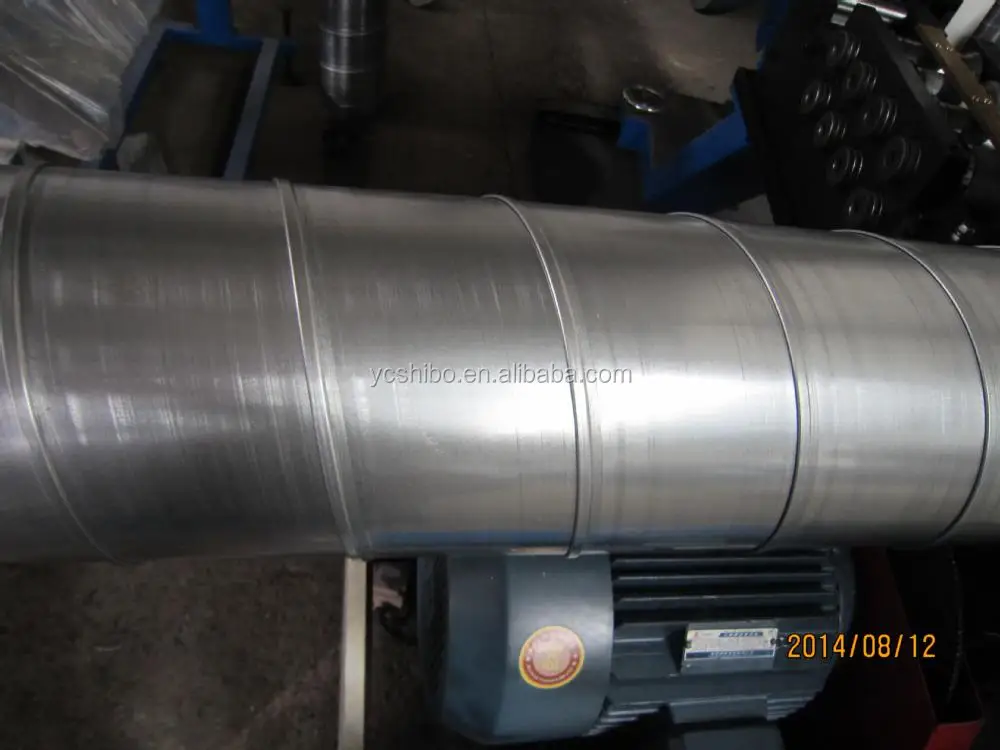

Spiral duct produced by  HVAC Automatic spiral duct machine

              Main technical data------- HVAC Automatic spiral duct machine

Diameter Range

80-1500mm

Maximum Tube Length

Unlimited mm

Thickness of Strip

0.4-1.0mm

Width of Strip

137mm

Strip Speed

1-36m/min

Suitable Material

Aluminum, Stainless steel, Galvanized steel,etc

Dimension (L x W x H)

2600mm x 1980mm x 2050mm

Weight

1800kg

Main Motor Power

5.5kW

Cutting Motor Power

4kW

Air Pressure

0.5-0.7Mpa

Control System

Japan Omron transducer & PLC



Company Information
Yancheng shibo machinery Co.,LTD. is the professional manufacturer of spiral round duct forming machine and metal forming machines for more than 10 years.
