Quick Details

  • Condition: New
  • Type: Pipe Production Line, Strip type spiral duct machine
  • Pipe Material: Carbon Steel
  • Application: Energy Supply Pipe
  • Production Capacity: 1-38M/MIN
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: SBJX
  • Model Number: SBJX-1500D
  • Voltage: 380V/Customized
  • Power(W): 5.5KW
  • Dimension(L*W*H): 2600*1980*2050MM
  • Weight: 1835KGS
  • Certification: CE ISO9001
  • Warranty: one year upon BL loading
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Thickness: 0.4-1.0mm
  • Width: 137mm
  • Length: unlimited
  • Diameter: 80-1500mm
  • Control system:: Touch screen, PLC,
  • Cutting system:: saw/shear/plasm cutting
  • Lock seam:: interlock, inside or outside
  • Forming mould:: steel strip, fixed mould
  • Drive system:: Hydrualic + Motorised

Packaging & Delivery

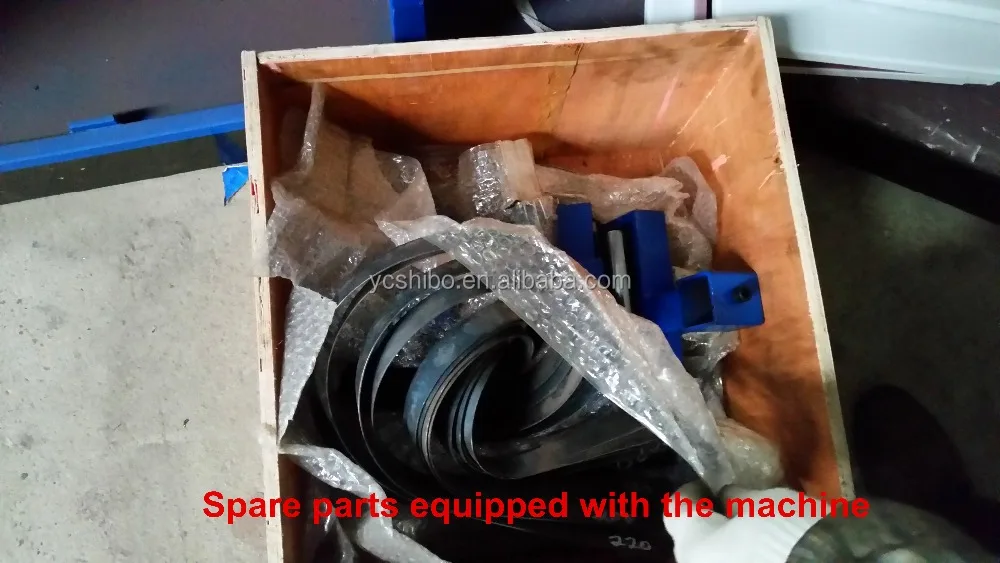

Packaging Details Wooden carton for Strip type spiral duct machine
Delivery Time Shipped in 30 days after payment

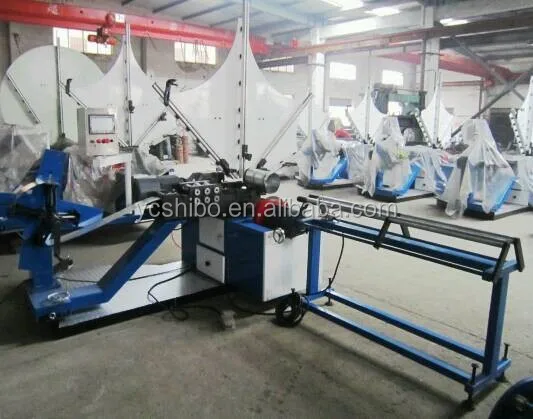

Strip type spiral duct machine

Product Description

Main technical data of Strip type spiral duct machine

The spiral duct machine is used to produce the HAVC air duct in rigid from galvanized steel or stainless steel, the finished duct is straight and rigid, and the lock seam is the interlock profile for airproof performance.

Feature of  Strip type spiral duct machine

  • Wall thickness up to 1.2mm for galvanized steel, and 0.8mm for stainless steel
  • Diameter up to 1500mm for speical structure, the max. diameter can be up to 2000mm
  • Pipe length up to 12000mm with automatic saw cutter or slitter
  • Stable performance with easy maintenance





              Main technical data-------  Strip type spiral duct machine

Diameter Range

80-1500mm

Maximum Tube Length

Unlimited mm

Thickness of Strip

0.4-1.0mm

Width of Strip

137mm

Strip Speed

1-36m/min

Suitable Material

Aluminum, Stainless steel, Galvanized steel,etc

Dimension (L x W x H)

2600mm x 1980mm x 2050mm

Weight

1800kg

Main Motor Power

5.5kW

Cutting Motor Power

4kW

Air Pressure

0.5-0.7Mpa

Control System

Japan Omron transducer & PLC



spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former, ventilationd duct machine, HVAC duct machine, air duct machine.
