Quick Details

  • Condition: New
  • Type: Pipe Production Line
  • Pipe Material: Carbon Steel
  • Application: Energy Supply Pipe
  • Production Capacity: 1-36 m /min
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: SBJX
  • Model Number: SBJX-2000A
  • Voltage: 380V/220V/415V/400V
  • Power(W): 20.5KW
  • Dimension(L*W*H): 3500*2100*3100mm
  • Weight: 2000KGS
  • Certification: CE ISO9001-UKAS
  • Warranty: 12months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Description: Spiral duct machine for hvac system
  • Width: 137 mm
  • Thickness: 0.4-1.0 mm
  • Diameter: 80-1500 mm
  • Lock Seam: Interlock insider or outside
  • Forming Mould: Steel strip ,fixed diameter
  • Cutting system: Saw /shear
  • Drive System: Hydrualic + Motorised
  • Control system: Touch screen , PLC

Packaging & Delivery

Packaging Details Exported Standard Packing Wooden Carton for Spiral duct machine for hvac system

Spiral duct machine for hvac system

Product Description

 Main features of Spiral duct machine for hvac system

1. Special models for various tube diameters,very easy to adjust,no needs crane or too much manpower.

2. Large diameter range

3. High speed synchro flying cutting system.

4. Japan Omron transducer&PLC control,convenient operation.

5. Light and small,suitable for site work.6. Perfect swage, without leakage

sPIRAL DUCT MACHINE FOR HVAC SYSTEM



                            Main technical data--   Spiral duct machine for hvac system

Diameter Range

200-2000mm

Maximum Tube Length

Unlimited mm

Thickness of Strip

0.6-2.0mm

Width of Strip

137-mm

Strip Speed

1-36m/min

Suitable Material

Aluminum, Stainless steel, Galvanized steel,etc

Dimension (L x W x H)

3500mm*2100mm*3100mm

Weight

2000kg

Main Motor Power

15kW

Cutting Motor Power

5.5kW

Air Pressure

0.5-2.0Mpa

Company Information

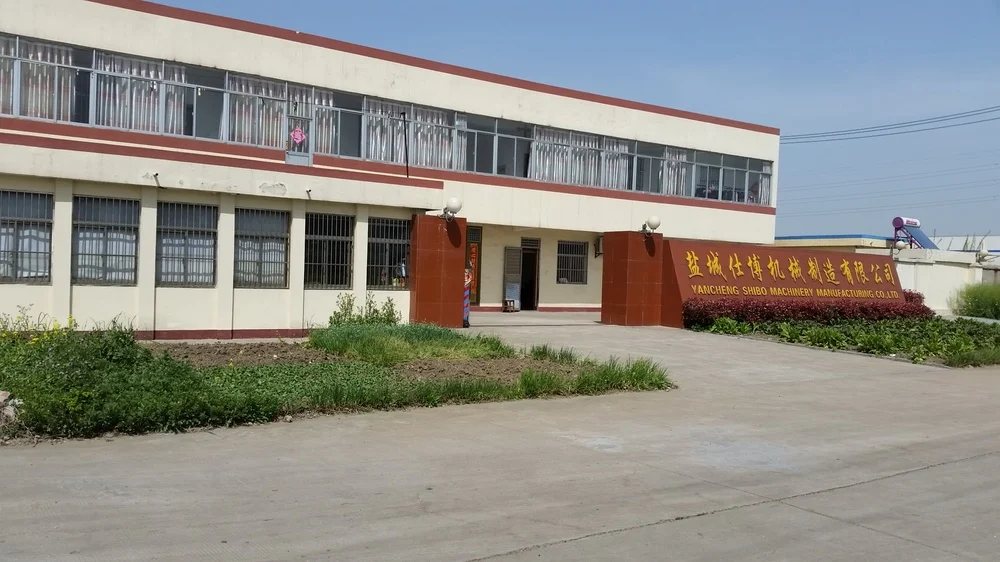

Yancheng shibo machinery Co.,LTD. is the professional manufacturer of

spiral round duct forming machineand metal forming machines for more than 10 years.

Also offer OEM service to the customer.has certified by CE , UKAS,

We can provide you not only good quality spiral duct machine but also values for Yancheng shibo machinery .






FAQ

 Q: How to check imported charges or tax ?

A:Call your Customer.tell them machine HS code.

   Spiral duct forming machine is 8455229090

   Press brake and rolling machines are 84622990.

   shearing machine is 84623990.

   rolling machine is 8455229090,

   seam welding machine is 85152900



Q:Payment terms,MOQ,warranty,FOB...

A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery

   minimum order quantity:1 set,FOB Shanghai.

   delivery time :20days after receipt of formal order and 30% deposit.

   warranty:12 months following delivery.



Q: what’s the package?

 A:fumigation-free plywood case or without package



Q:Do you offer teaching&training ?

A: Yes , the engineer is available for oversea service



• what’s policy for guarantee and broken parts?

Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.

Spira duct machine|Spiral tube forming machine|air duct machine| hvac duct forming machine|ventilation duct machine |machine for duct | hvac duct machine|duct machine
