CE Spiral Duct Machine

FOB Reference Price:Get Latest Price
US $5,000-15,000 / Sets | 1 Set/Sets CE Spiral Duct Machine (Min. Order)
Model Number:
SBJX-1500D
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Pipe Production Line, CE Spiral Duct Machine
Pipe Material:
Carbon Steel
Application:
Energy Supply Pipe
Production Capacity:
1-38M/MIN
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
SBJX
Voltage:
380V/Customized
Power(W):
5.5KW
Dimension(L*W*H):
2600*1980*2050MM
Weight:
1835KGS
Certification:
CE ISO9001
Warranty:
one year upon BL loading
After-sales Service Provided:
Engineers available to service machinery overseas
Width:
137 mm
Diameter:
80- 1500 mm
Thickness:
0.4 - 1.0 mm
Control system::
Touch screen, PLC,
Cutting system::
saw/shear/plasm cutting
Lock seam::
interlock, inside or outside
Forming mould::
steel strip, fixed mould
Drive system::
Hydrualic + Motorised
Oversea Market:
Australia , Hungary , Russia , Brazil, Japan
SupplyAbility
SupplyAbility:
10 Set/Sets per Month CE Spiral Duct Machine
Packaging & Delivery
Packaging Details
Wooden carton for CE Spiral Duct Machine
Port
Shanghai
Lead Time :
Shipped in 30 days after payment

CE Spiral Duct Machine

Product Description

Main technical data of   CE Spiral Duct Machine

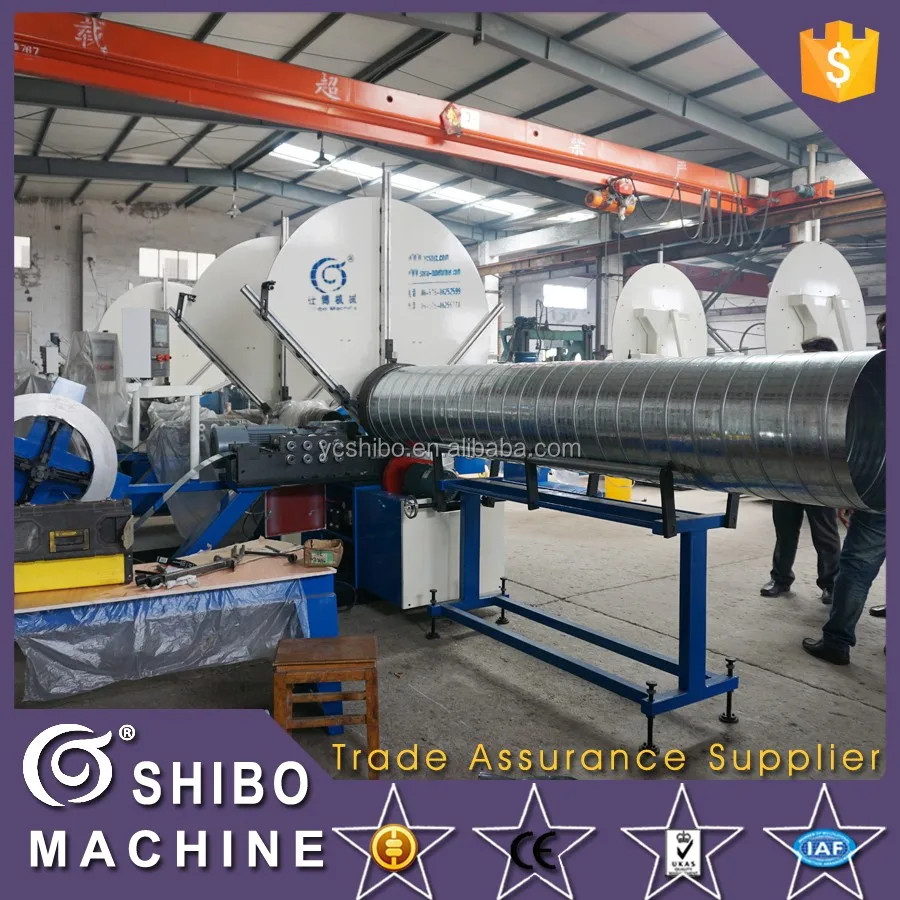

The spiral duct machine is used to produce the spiral round duct for ventialtion purpose ,

diameter from 80-1500mm and material thickness up to 1.0 mm .



5042_900

IMG_187720150125_135335_

IMG_4264



              Main technical data-------  HVAC  spiral duct making machine

Diameter Range

80-1500mm

Maximum Tube Length

Unlimited mm

Thickness of Strip

0.4-1.0mm

Width of Strip

137mm

Strip Speed

1-36m/min

Suitable Material

Aluminum, Stainless steel, Galvanized steel,etc

Dimension (L x W x H)

2600mm x 1980mm x 2050mm

Weight

1800kg

Main Motor Power

5.5kW

Cutting Motor Power

4kW

Air Pressure

0.5-0.7Mpa

Control System

Japan Omron transducer & PLC

 IMG_4260

Company Information

Professional manufacturer with 10 years producing experience for better quality control ,

Welcome to Shibo machinery for inspecting .

Shanghai to Yancheng :(13:10-14:00pm)  ( Tuesday , Thursday , Sunday per week)

Guangzhou to Yancheng: (15:45pm-18:10pm per day !




28

FAQ

 Q: How to check imported charges or tax ?

A:Call your Customer.tell them machine HS code.

   Spiral duct forming machine is 8455229090

   Press brake and rolling machines are 84622990.

   shearing machine is 84623990.

   rolling machine is 8455229090,

   seam welding machine is 85152900



Q:Payment terms,MOQ,warranty,FOB...

A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery

   minimum order quantity:1 set,FOB Shanghai.

   delivery time :20days after receipt of formal order and 30% deposit.

   warranty:12 months following delivery.



Q: what’s the package?

 A:fumigation-free plywood case or without package



Q• what’s policy for guarantee and broken parts?

Warranty period of equipment lasts a year, during which the broken parts and spares caused by

 quality can be offered free



22DSC01056

20150704_172418(0)Spira duct machine|Spiral tube forming machine|air duct machine| hvac duct forming machine|ventilation duct machine |machine for duct | hvac duct machine|duct machine
